Custom Eccentric Screws & Alignment Pins
Precision-engineered for smart locks and architectural fenestration. We deliver 0.05mm accuracy for flawless micro-adjustments, anti-wobble assembly, and 10-day rapid prototyping.
Product Introduction
Industry pain points and background

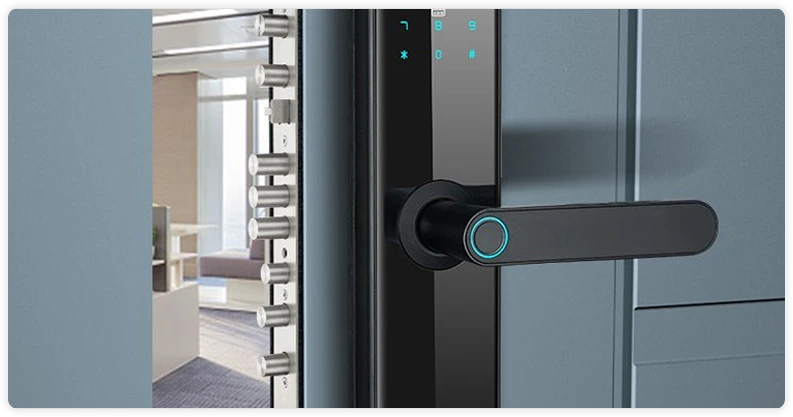

Aligning complex mechanisms like smart door locks or architectural window hinges requires extreme precision. Standard fasteners cannot provide the dynamic micro-adjustments needed to eliminate clearance gaps, leading to friction, binding, or wobbly assemblies. You need fastening solutions that allow for smooth axial adjustment while maintaining robust structural integrity under daily wear and tear.
Core Product Details

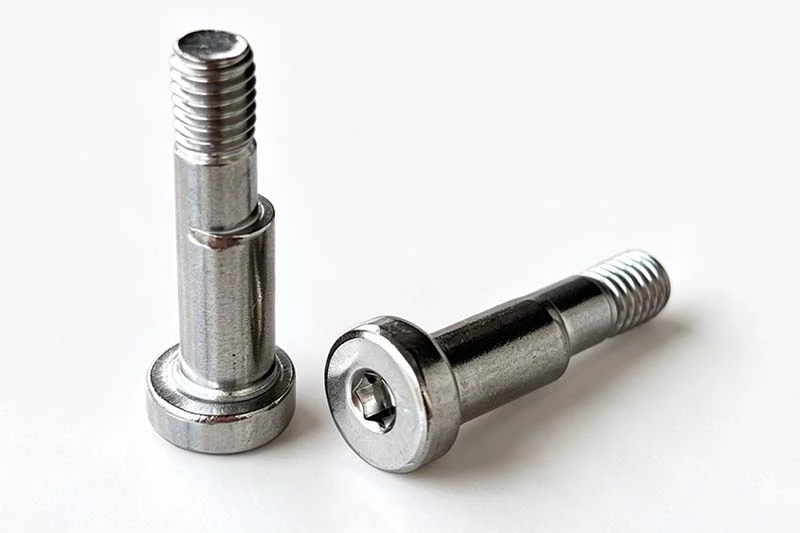

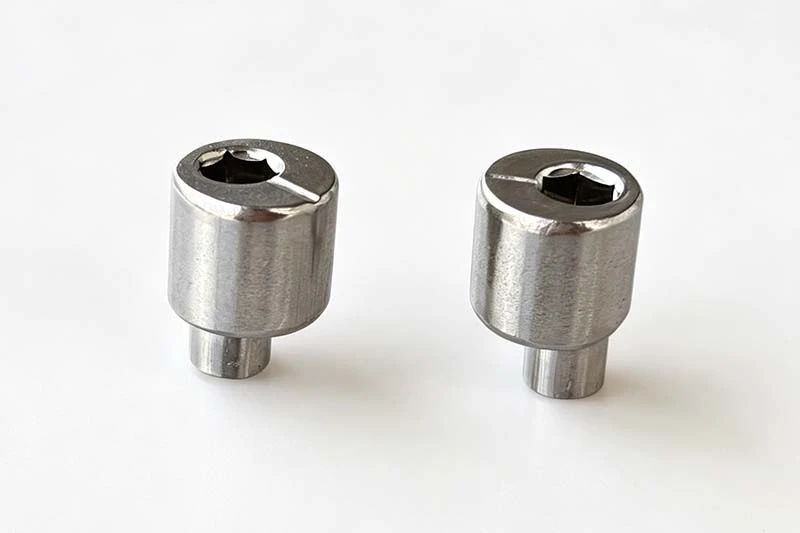

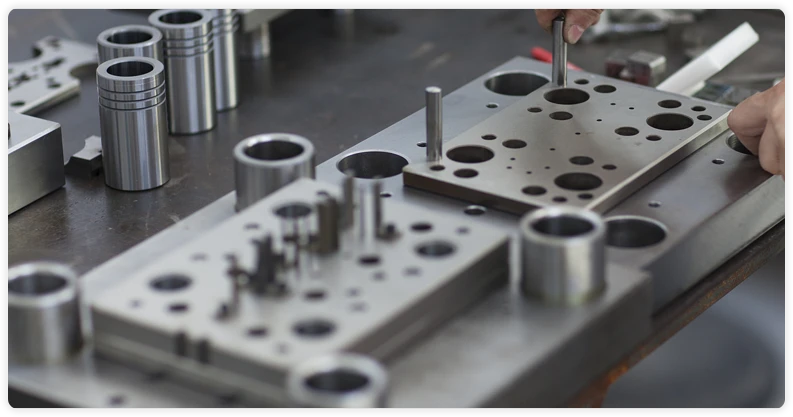

Guanbiao specializes in the manufacturing of custom eccentric screws, cam pins, and alignment hardware. Utilizing a highly cost-effective hybrid manufacturing process—combining multi-station cold forging for core strength with advanced CNC machining for the offset axis—we achieve exact eccentric geometries. Designed specifically for smart security systems and premium aluminum windows, our eccentric pins ensure precise mechanical positioning, zero-wobble rotation, and exceptional load-bearing capacity.

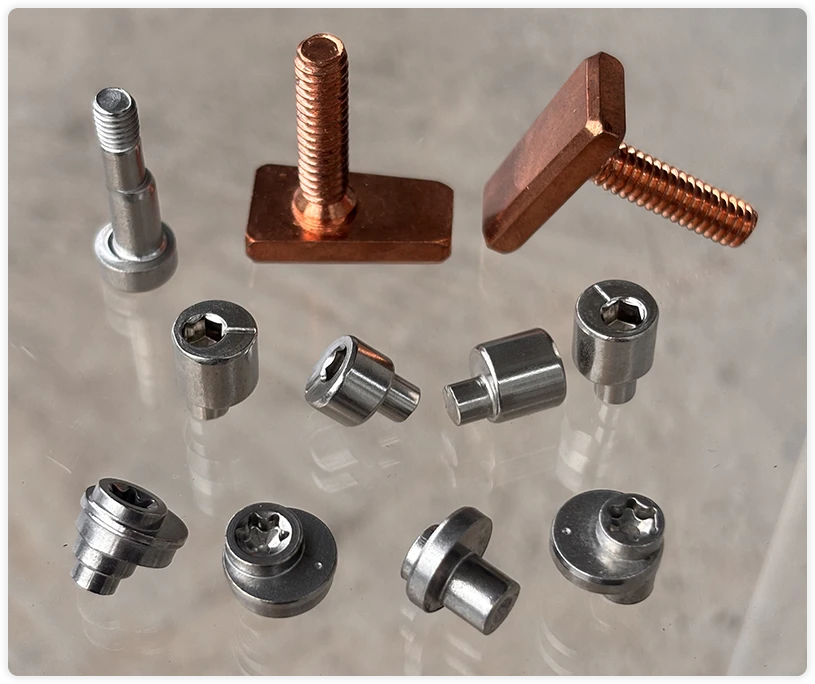

Key Features
1: 0.05mm Micro-Adjustment Precision
Allows for flawless alignment in tight assemblies
2: Anti-Wobble Design
Engineered to eliminate lateral play in hinges and latches
3: High-Wear Cam Surfaces
Heat-treated for long-lasting rotational durability
4: Hybrid Manufacturing Accuracy
Cold forged strength combined with CNC precision
5: Small-Batch Agility
Flexible MOQ to support your R&D iterations

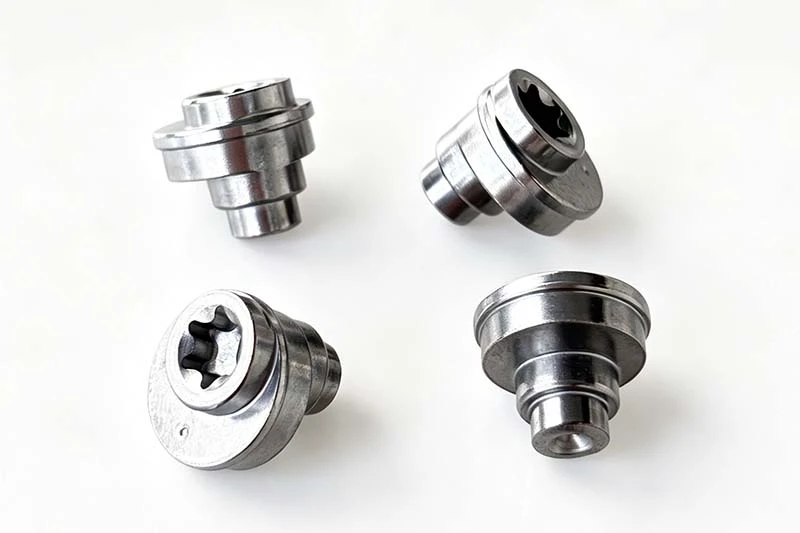

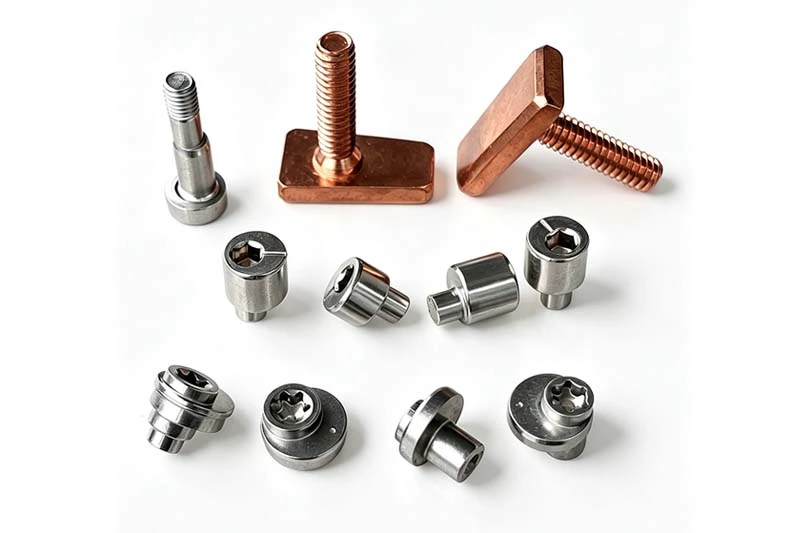

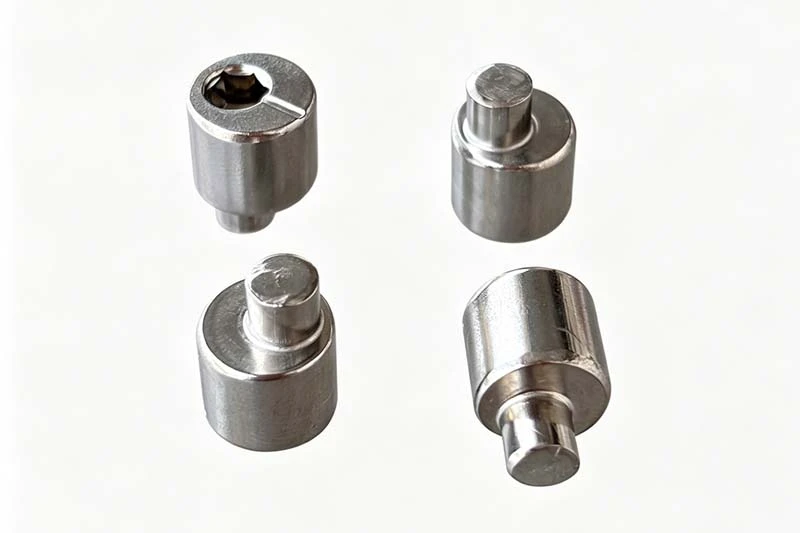

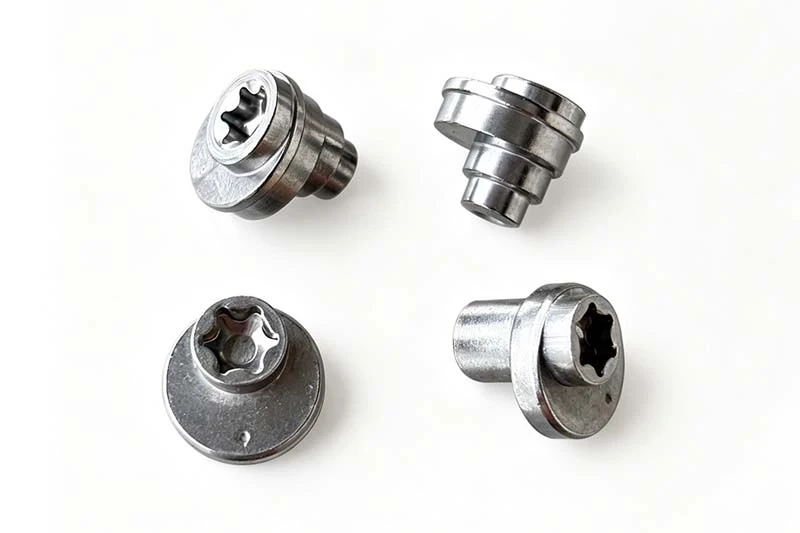

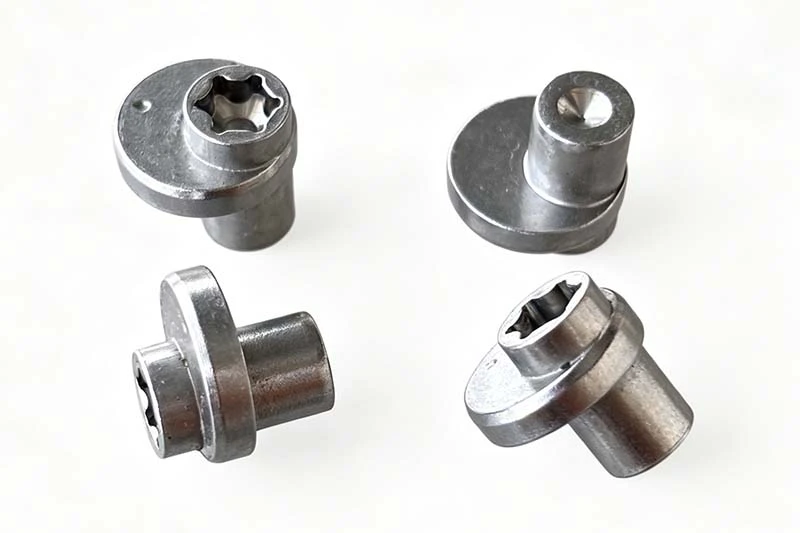

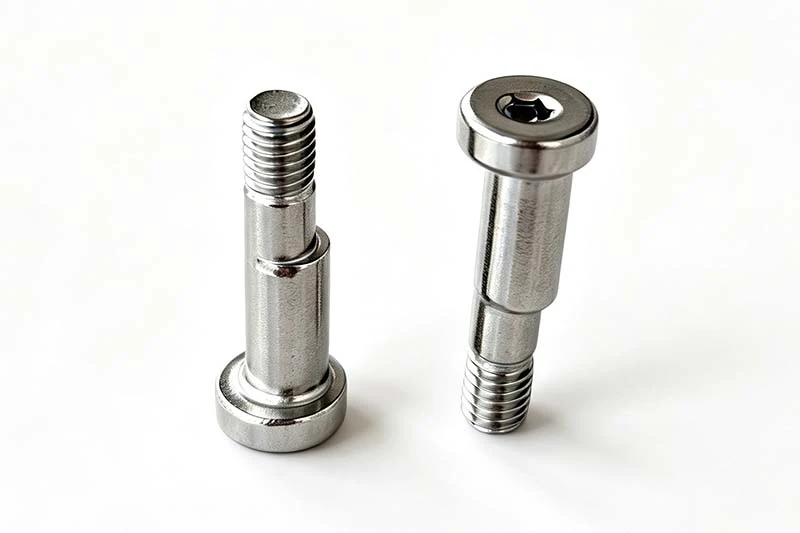

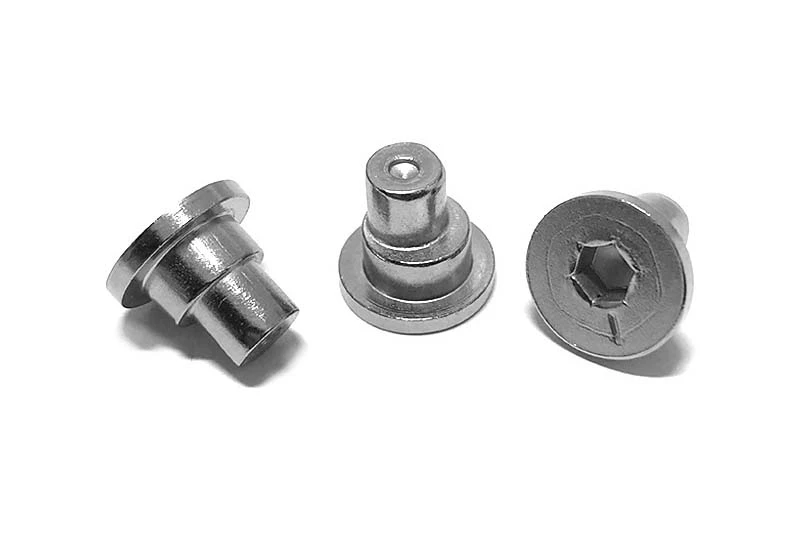

Product Showcase
Materials We Work With
Mechanical Testing
Stainless Steel (304, 316 for extreme outdoor weatherability; 420, 430 for hardening); High-Tensile Carbon Steel; Brass (for low-friction cam applications).
Material Strategy
Eccentric pins must withstand constant rotational friction. We select materials that provide superior wear resistance and s tructural rigidity. All materials comply with RoHS/REACH standards, and complete Material Test Certificates (MTC) are provided.

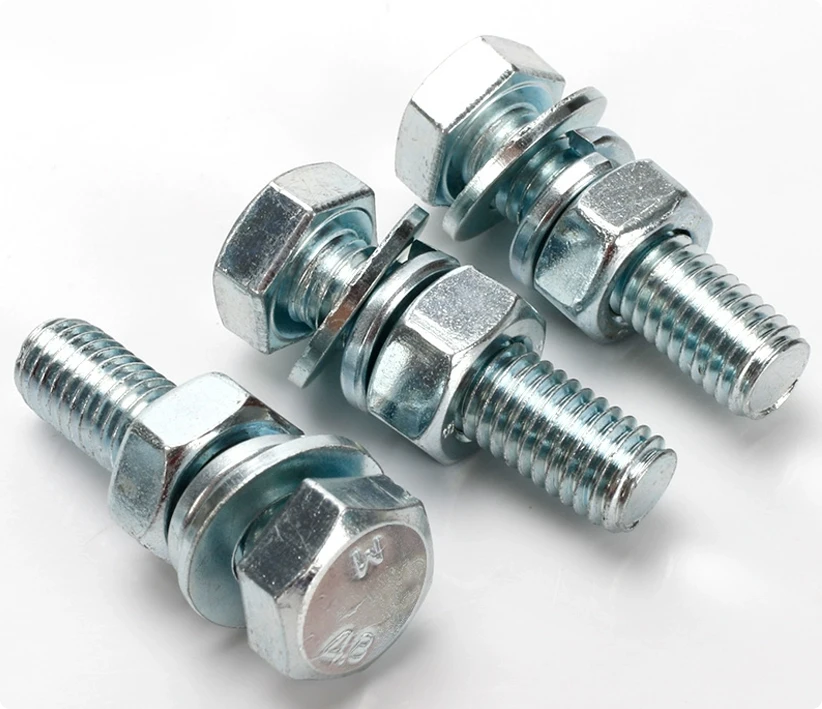

Surface Finishes
Surface Finishes for Anti-Friction & Weatherability
Dacromet & Zinc-Nickel
Offers exceptional rust protection and salt-spray resistance, ideal for outdoor architectural windows and doors.
Black Oxide
A discrete, anti-reflective finish commonly used for internal mechanisms in smart locks and optics.
Passivation
Maximizes the natural anti-corrosion properties of our 300-series stainless steel hardware.
Case Hardening (Carburizing)
Dramatically increases the surface hardness of the eccentric cam, preventing wear and deformation during repeated adjustments.
Technical Capabilities
Manufacturing Capabilities & Tolerances
| Max Part Size | Custom offsets, diameters, and lengths tailored to your mechanism. |
| Tolerances | Strictly maintained to ± 0.05mm. |
| Capabilities | Multi-Station Cold Heading + Precision CNC Milling/Turning. |
| MOQ | Flexible / Small-Batch Trial Supported. |
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Featured Projects
Typical Eccentric Fastening Applications
Project 1

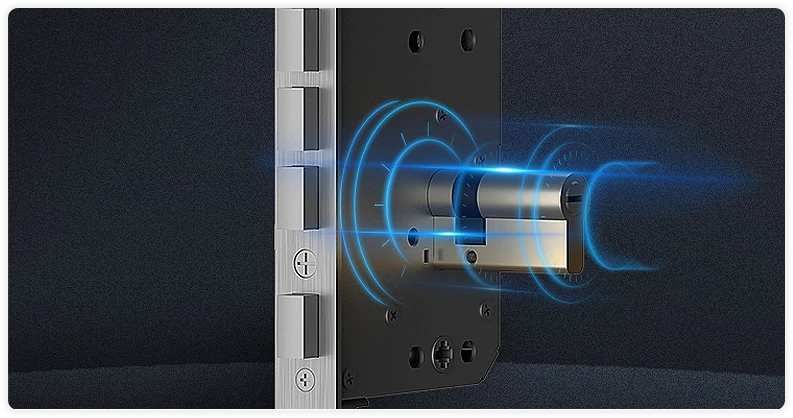

● Project Name: High-End Smart Lock Core Alignment
● Challenge: The client's smart lock cylinders were jamming during automated assembly due to tolerance stack-up.
● Solution: We engineered a custom eccentric adjustment pin with a 0.05mm tolerance, allowing assemblers to dial in perfect alignment and ensuring a premium, smooth feel.
Project 2

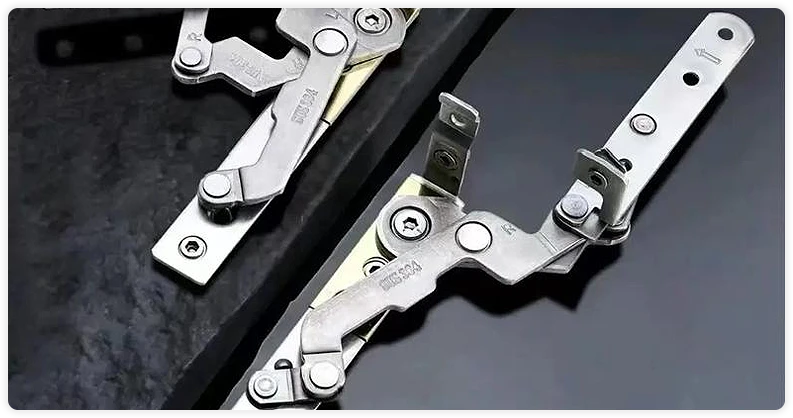

● Project Name: Broken Bridge Aluminum Window Hinge Adjustment.
● Summary: Supplied heavy-duty stainless steel eccentric cam pins for an architectural window manufacturer. The hardware provided robust anti-wobble support while allowing precise on-site track tension adjustments.
Applications
Smart Locks & Access Control

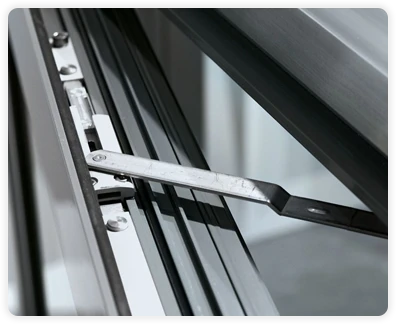

Architectural Windows & Doors

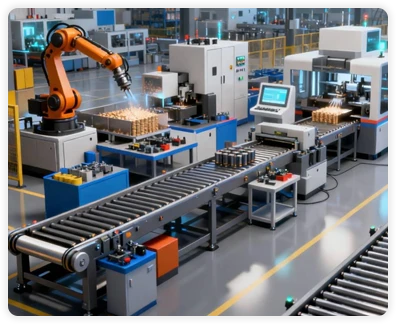

Precision Automation
Smart Locks & Security
FAQ
While we use cold forging for the main body, the actual eccentric offset is precisely cut using advanced CNC milling and turning centers, allowing us to guarantee tolerances of ± 0.05mm.
For premium architectural applications, we strongly recommend 304 or 316 Stainless Steel for its superior natural rust resistance. Alternatively, hardened carbon steel with a Dacromet coating provides excellent weatherability.
Yes. We can act as your single-source supplier, manufacturing both the custom eccentric screw and the matching precision CNC components required for your specific assembly.
Yes. We are small-batch friendly. We understand that adjusting eccentric offsets requires testing, and we proudly offer flexible MOQs to support your initial R&D phases.
